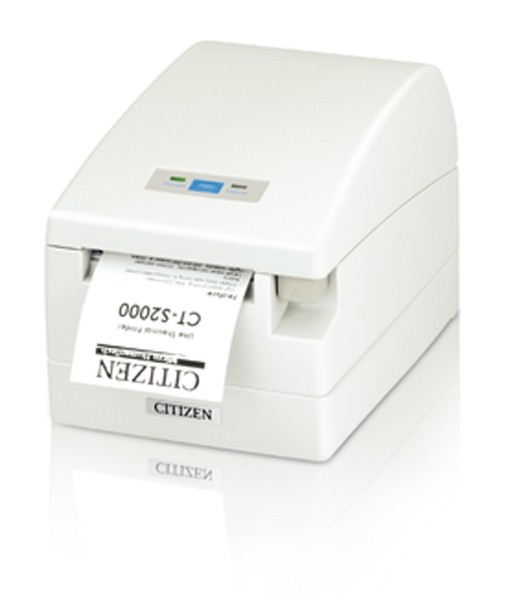

Citizen CT-S2000 (CTS2000RSEWH)

Receipt printer, direct thermal (two-colour), 8 dots/mm (203 dpi), variable paper width (58/60/80/82.5mm), print width (max.): 80 mm, 220mm/sec., USB, RS232, ESC/POS, included: power supply unit, NOT included: interface cable, colour: white

With its unique high-speed memory the CT-S2000 thermal printer is capable of printing at speeds up to 220 mm/sec.  Built for long life and tough use, the CT-S2000 features an innovative Spill-Shield™ design to keep out moisture, dirt and debris.  With large capacity (102mm) drop-in paper loading, Quick-Clear™ technology for one-touch clearing of cutter jams and a two-million cut-rated auto paper cutter the CT-S2000 is ideal for a wide range of POS, receipt and hospitality applications.

Key Benefits
• Standard USB interface
• One-touch open and easy loading
• Paper exit: Front exit, top loading
• Printing Speed: Fast print out of receipts - up to 220mm per seconds
• Low space requirement - integrated power supply enables clean work station
• Cash drawer connection
• Splash proof design

Product References
• CTS2000USBWH: Receipt printer, direct thermal (two-colour), 203 dpi, USB, ESC/POS, colour: white
• CTS2000USBBK: Receipt printer, direct thermal (two-colour), 203 dpi, USB, ESC/POS, colour: black
• CTS2000PAEWH: Receipt printer, direct thermal (two-colour), 203 dpi, USB, parallel, ESC/POS, colour: white
• CTS2000PAEBK: Receipt printer, direct thermal (two-colour), 203 dpi, USB, parallel, ESC/POS, colour: black
• CTS2000RSEWH: Receipt printer, direct thermal (two-colour), 203 dpi, USB, RS232, ESC/POS, colour: white
• CTS2000RSEBK: Receipt printer, direct thermal (two-colour), 203 dpi, USB, RS232, ESC/POS, colour: black

Compatible Products
Autocutter: Citizen ACS-631

Citizen CT-S2000 (CTS2000RSEWH)

• Printing Technology: Direct Thermal
• Print Speed (maximum): 220 mm /sec.
• Print Width (maximum): 58 / 60 / 72 /80 mm (on 58 / 60 / 80 / 82.5 mm paper)
• Media Width (min to max): 58 / 60 / 80 / 82.5 mm
• Roll Size (max), Core Size: 102 mm outside diameter
• Flash (Non-Volatile Memory): 384K bytes
• Drivers and software: Free-of-charge from website, including support for various platforms
• Size (W x D x H) and Weight: 147x207x147 mm, 1.2 Kg (AC type) / 1.8 Kgs (DC type)
• Emulations (Languages): ESC/POS™, Barcodes, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8), Codabar, ITF, CODE39, CODE93, CODE128, CODABAR(NW-7)
• Media type: Thermal receipt paper
• Cutter: Guillotine type, full and partial
• Drawer kick-out: 2 Drawers
• Power supply: 100 - 240V, 50/60hz
• Reliability: 200 Million pulses or 150 Km, 2 million cuts
• EMC and safety standards: CE, TUV, UL, C-UL, FCC class A
• Number of columns: On 82.5mm paper up to 80 digits (8 x 16 font C), On 82.5mm paper up to 71 digits (9 x 17 font B), On 82.5mm paper up to 53 digits (12 x 24 font A), On 80mm paper up to 72 digits (8 x 16 font C), On 80mm paper up to 64 digits (9 x 24 font B), On 80mm paper up to 48 digits (12 x 24 font A), On 60 mm paper up to 54 digits (8 x 16 font C), On 60mm paper up to 48 digits (9 x 17 font B), On 60mm paper up to 36 digits (12 x 24 font A), On 58mm paper up to 52 digits (8 x 16 font C), On 58mm paper up to 46 digits (9 x 17 font B), On 58mm paper up to 35 digits (12 x 24 font A)
• Character table / Code page: Katakana, Thai code18, WPC1252, 437, 850, 852, 857, 858, 860, 863, 864, 865, 866
• Line spacing: 4.23mm (1/6 inch); adjustable by user comand
• Input buffer: 4K bytes / 45 bytes
• Operation environment: +5 to +40°C, 35% - 90% RH, non condensing
• Storage environment: -20 to +60°C, 10% - 90% RH, non condensing
• Resolution: 203 dpi
• Interface: USB, RS232
