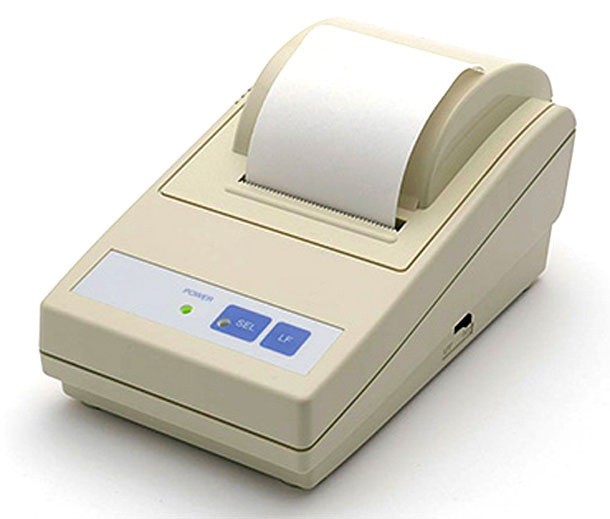

Citizen CBM-910II (CBM91040PF2A)

Receipt printer, dot-matrix printing, media width (max.): 58 mm, print width (max.): 40 columns, speed (max.): 2.5lps, parallel, included: power supply unit, power cable (EU), NOT included: interface cable

The CBM910II is one of the smallest POS printers available.  Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications.  Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.

Key Benefits
• Palm size
• Optional wall mount
• Paper-near-end sensor
• Paper exit: Top exit - ideal for all retail applications
• Printing Speed: Fast printing - 2.5 lines per second

Product References
• CBM91040PF2A: receipt printer, dot-matrix printing, media width (max.): 58 mm, print width (max.): 40 columns, speed (max.): 2.5lps, parallel
• CBM91024RF2A: receipt printer, dot-matrix printing, media width (max.): 58 mm, print width (max.): 24 columns, speed (max.): 2.5lps, RS232
• CBM91040RF2A: receipt printer, dot-matrix printing, media width (max.): 58 mm, print width (max.): 40 columns, speed (max.): 2.5lps, RS232

Compatible Products
• Ribbon: IR91
• Parallel Cable: PARKAB / KABPASW18

Citizen CBM-910II (CBM91040PF2A)

• Printing Technology: Serial dot impact
• Print Speed (maximum): 2.5 lines / sec.
• Media Width (min to max):  57.5 mm (+/- 0,5 mm)
• Media Sensor: Paper end
• Power supply: DC/V
• Reliability: 1.5 Million lines
• EMC and safety standards: CE, TUV, UL, C-UL, FCC class A, VCCI
• Number of columns: Up to 24 (1.62 x 2.4 mm)
• Character table / Code page: Katakana, WPC1252, 437, 852, 857, 858, 860, 863, 864, 865, 866
• Line spacing: Character: 3.52 mm, Graphic: 2.4 mm
• Input buffer: 2K bytes
• Operation environment: +5 to +40°C, 35% - 90% RH, non condensing
• Storage environment: -20 to +60°C (10% to 90% RH non condensing)
• Interface: Parallel
