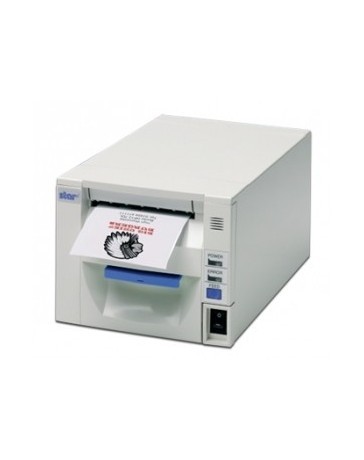

Star FVP10 (39620000)

Receipt printer, direct thermal, resolution: print, 8 dots/mm (203 dpi), media width (max.): 58-80mm, print width (max.): 72 mm, speed (max.): 250 mm/s, USB, voice output, ESC/POS, Star, NOT included: power supply unit, colour: white

An industry-leading, multi-functional under-counter receipt and label printer with front operation, the FVP10 offers high speed performance, paper saving features as well as a unique voice communication tool.

The FVP10 features a tough and durable splash proof casing with IPX1 certification and downwards angled paper exit to prevent liquid intake for hospitality applications.  The square design, front operation and flat top provide a space-saving opportunity.  With the shelf mount option, the FVP10 can be discreetly mounted under a counter or sales desk keeping these areas clear and offering opportunities to use the space much more efficiently.  The FVP10 features a black mark sensor for fixed length labels and tickets printed on media from 0.065 to 0.15mm in thickness.

The FVP10 is the only POS printer on the market to feature a unique drawer style front-loading system that offers true “Drop-In & Print” paper loading.  This makes it perfect for use under a counter and ensures that re-loading time is kept to a minimum.

Product References
• 39620000: Receipt printer, direct thermal, 203 dpi, print width (max.): 72 mm, USB, voice output, ESC/POS, Star, colour: white
• 39620010: Receipt printer, direct thermal, 203 dpi, print width (max.): 72 mm, USB, voice output, ESC/POS, Star, colour: black

Compatible Products
Power Supply: Star 30781880

Star FVP10 (39620000)

• Max. Print Speed: 250mm/sec.
• Resolution: 203 dpi, 406 x 203 dpi selectable
• No. of Columns: 48 / 64 col. Depending on Paper Width
• Autocutter: Full or Partial Cut (Guillotine)
• Paper Width: 58 – 80mm Fully Adjustable
• Paper Thickness: 0.065 – 0.15mm
• Paper Roll Standard Option: 83mm
• Media Presentation: Front Output Delivery with Flat Shelf Mount, Bracket Option
• Print Width: 72mm
• Sensors: Black Mark, Paper End, Cover Open, Near End
• Interface: FVP10U – USB model with 2nd interface slot for Plug-In Options: Serial, Parallel, Ethernet, WebPRNT,
• Power Supply: External Option PS60A
• Power Consumption: 1.56 Amps Printing 0.12 Amps Standby
• Energy Star: External, Energy Star Qualified PS60 (Optional)
• Reliability: 60 Million Lines, 2 Million Cuts
• Dimensions (W x D x H) mm Weight: 144 x 227.7 x 114, 2.8kg
• Options: MK-FVP10 Mounting Bracket, Plug-in 2nd Interfaces, Serial, Parallel, Ethernet, WebPRNT
