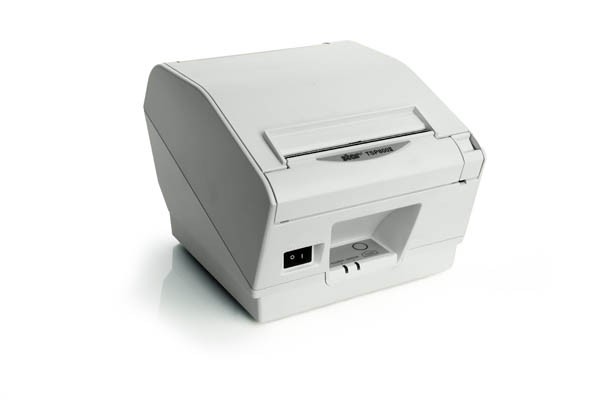

Star TSP800II (39443600)

Receipt printer, direct thermal, resolution: print, 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, speed (max.): 150 mm/s, included: cutter, ESC/POS, Star, NOT included: power supply unit, white

The TSP800II is a unique and versatile thermal printer capable of printing on wider than average media up to 112mm wide. Combined with a unique A4 raster driver capable of scaling an A4 image onto 112mm wide paper, the TSP800II can be integrated as a cost effective receipt, ticket or label printer or an easy-to-use and compact alternative to standard A4 invoice or report printers in retail and hospitality environments with significant paper and consumables cost savings.

The TSP800II incorporates a black mark sensor and is capable of printing on to media up to 150gsm making it an ideal low cost label printer for shelf edge labels or a reliable, high quality ticket printer for wider format tickets.

Features
• Versatile 180mm / sec. Barcode, Label, Receipt & Ticket Printer with Autocutter
• Unique 112mm paper width, 104mm / 4″ print width – on paper stock up to 0.15mm thick. (82.5 and 80mm paper rolls can also be accommodated using the optional paper guides)
• Internal or External Paper Feed Paths (external for large capacity or security applications)
• “Drop-In & Print”, easy paper loading
• Compact Footprint (180 (w) x 213 (d) x 148 (h) mm) with vertical “Desk Boot” and Wall Mount options
• Automatic scalable raster driver for immediate A4 reduction to A6. Ideal for desktop replacement printer, Internet café, hotel and kiosk use

Product References
• 39443710: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, parallel, cutter, ESC/POS, Star, dark grey
• 39443901: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, USB, cutter, ESC/POS, Star, white
• 39443700: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, parallel, cutter, ESC/POS, Star, white
• 39443810: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, RS232, cutter, ESC/POS, Star, dark grey
• 39443610: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, cutter, ESC/POS, Star, dark grey
• 39443600: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, cutter, ESC/POS, Star, white
• 39443800: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, RS232, cutter, ESC/POS, Star, white
• 39443911: Receipt printer, direct thermal, 203 dpi, print width (max.): 104 mm, USB, cutter, ESC/POS, Star, dark grey

Compatible Products
Interface: Star 39607820 / 39607200 / 39607211 / 39607804
Power Supply: Star 30781880
