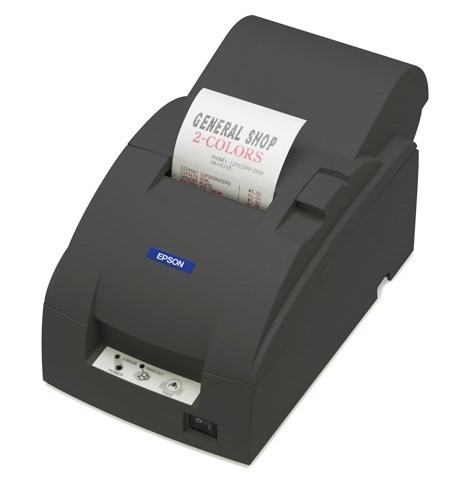

TM-U220A (C31C513057)

Receipt printer, dot-matrix printing, media width (max.): 76 mm, speed (max.): 6lps, RS232, cutter, rewinder, ESC/POS, included: power supply unit, NOT included: power cable, colour: black

Outstanding Compatibility
The TM-U220 printers are designed to be compatible with existing systems built around a TM-U210. These systems can be upgraded simply by dropping in a TM-U220. Moreover, since the external dimensions are nearly identical, there is no need to change the installation environment. The transition to the new model is as smooth as can be.

Easy Operation
Free busy operators from troublesome roll paper and ribbon cassette replacement. The TM-U220 makes these chores a snap. Simply pop the cover, drop in the paper or ribbon, shut the cover. You're back in business.

Higher Printing Speed
A full 30% faster than its predecessors, the TM-U220 printers provide high-efficiency throughput. Retailers can hand receipts to customers faster. Restaurant kitchens can receive orders quickly.

Superior Versatility
The versatile TM-U220 suits a wide range of needs and applications. Each type is powerful, yet compact enough to fit in confined spaces. The wall-mountable Type B frees up valuable counter space in kitchens and other tight locations. Moreover, both Type B and Type D handle your choice of 58, 69, or 76 mm width roll paper.

Environmentally Conscious
This product meets Epson ecology label compliance standards and has following major features:
- Low energy consumption (25 % lower during operation, 60 % lower during standby than TM-U210).
- Reduced labor for disassemby by reducing the number of parts.
- No use of chemical substances prohibited to be included in products for parts, materials and packing materials.
- Uses high quality plain paper, since it is easier for recycling than thermal paper. Three selectable paper widths avoid wasting paper.

Related Products
Ribbon: C43S015374 / C43S015376
Accessories: C32C845040 / KABDE3P18 / Kaltkkabel2

TM-U220A (C31C513057)

Font
Font A: 9 x 9
Font B: 7 x 9 (default)

Column Capacity
Paper width 76 mm, 33 / 40
69mm, 30/36 columns
58mm, 25/30 columns

Character Size (W x H)
Font A: 1.6mm (W) x 3.1mm(H)
Font B: 1.2mm(W) x 3.1mm(H)

Character Set
95 Alphanumeric, 48 International, Extended graphics: 128 x 12 pages

Characters Per Inch
Font A: 13.3cpi
Font B: 16cpi

Roll Paper
76.0 ± 0.5 (W) × dia. 83.0
69.5 ± 0.5 (W) × dia. 83.0
57.5 ± 0.5 (W) × dia. 83.0

Dot Density
180 dpi x 180 dpi

Overall Dimension (D x W x H)
Type A: 160 (D) x 286 (W) × 157.5 (H) mm

Mass
Type A: Approximately 2.7 kg (5.94 lb)

Two Colour Printing
Yes

Autocutter
Yes except Type D

Take Up Device
Yes only Type A

Interface
RS-232

MCBF
18 milion lines

Printer Mechanism Life
7.5 millon lines

Auto Cutter Life
800,000 cuts (Type A and Type B only)

Mean Time Between Failure (MTBF)
180,000 hours

Print Method
9-pin serial impact dot matrix

Print Speed
4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi)

Supply Voltage and Frequency
DC +24 V ± 7%

Power Consumption
Operating: Approx. 38 W (Mean)
Standby: Approx. 2.2 W (Mean)

Power Supply
PS-180

Receive Data Buffer
4 KB or 40 bytes
